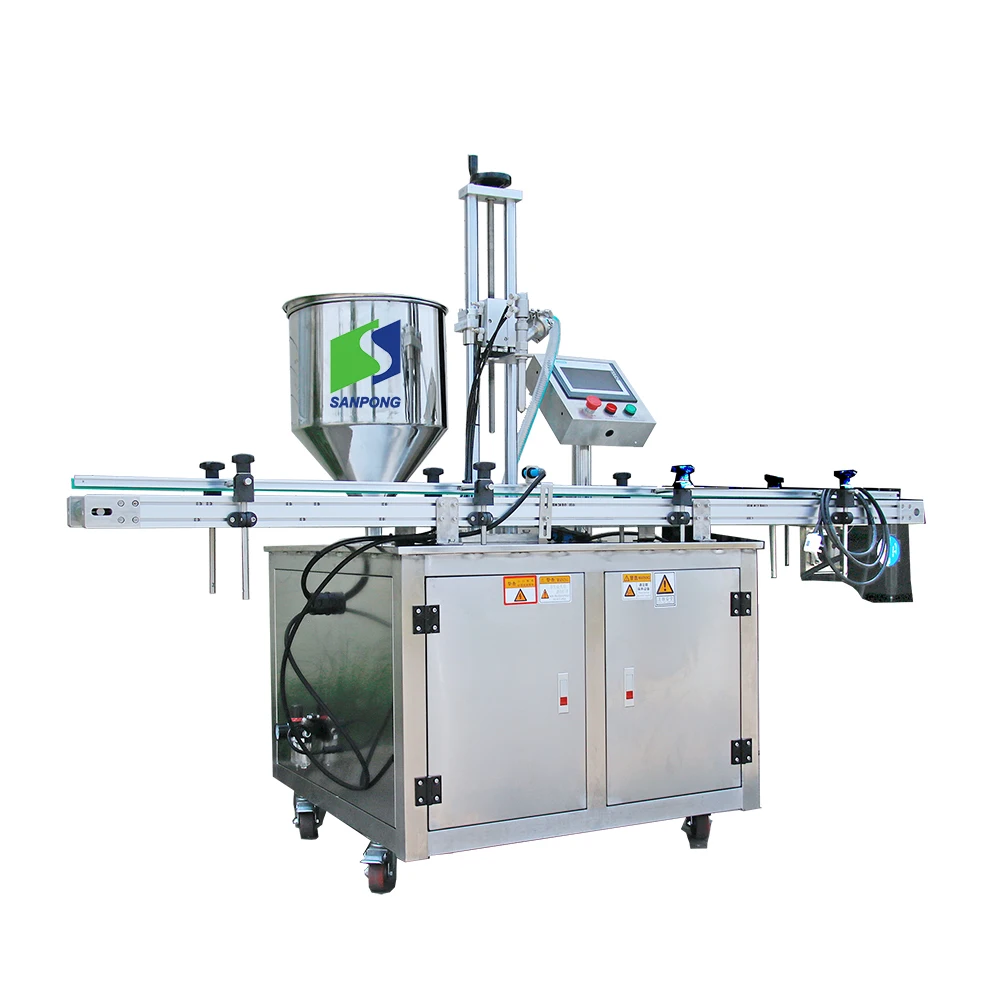

Automatic 40-50pcs/min rotor pump filling machine for low-viscocity liquid

Automatic liquid filling machine

Automatic 40-50pcs/min rotor pump filling machine for low-viscocity liquid

Widely used for filling low-viscosity non-gas liquid such as milk, wine, drinking water, and a variety of food and beverage (such as tea, soy sauce, wine, vinegar, etc.), medicine, chemical, pesticide (containing acid, alkali, organic solvent or diethyl benzene can be) and other industries of all kinds of easy to flow liquid filling.

Product Details

Product Description

Specification
Voltage	220v/380v
Brand Name	Sanpong
Dimension(LWH) & Weight	19808001400, 200KG
Certification	CE Certificate
Filling Accuracy	±1%
Material	304 Stainless Steel
Filling head	1 Pcs
Filling capacity	10-5000ml
Filling speed	40-50 Pcs/min
Filling temperature	20℃~60℃ (if above 60℃, pipe and sealing ring need to be replaced)

Feature

1. With no bottle no filling function, liquid level automatic control feeding, effectively reduce equipment failure;
												2. The overall appearance is made of 304 stainless steel with a thickness of 1.2mm;

												3. Filling volume and filling speed adjustment is simple, by the touch screen operation and display, beautiful appearance;

												4. Trough and other liquid contact parts of the material: 304# stainless steel, food grade silicone, food grade PVC;

												5. The equipment has strong compatibility, without changing parts, it can quickly adjust and replace bottles of different shapes and specifications, which can meet the production requirements of many varieties and specifications;

Product Details

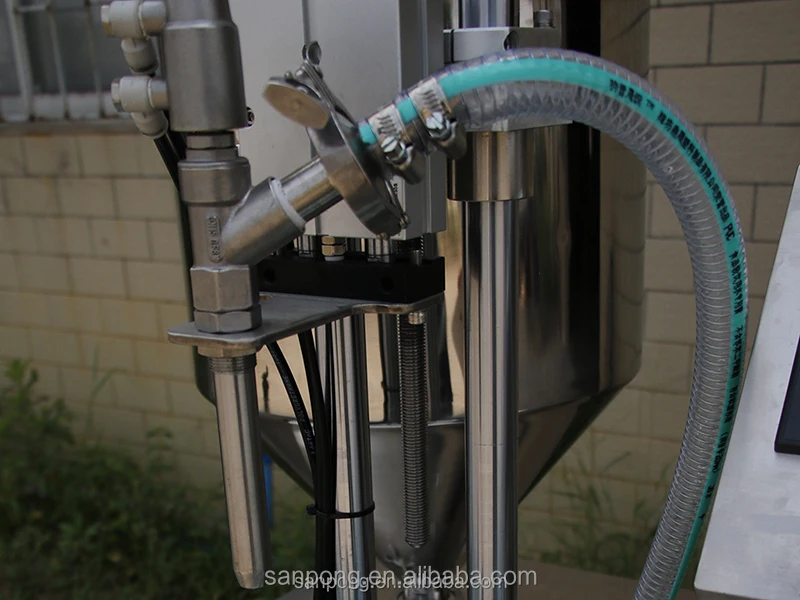

										The filling nozzle adopts 304 stainless steel material, corrosion resistant, in line with GMP production requirements

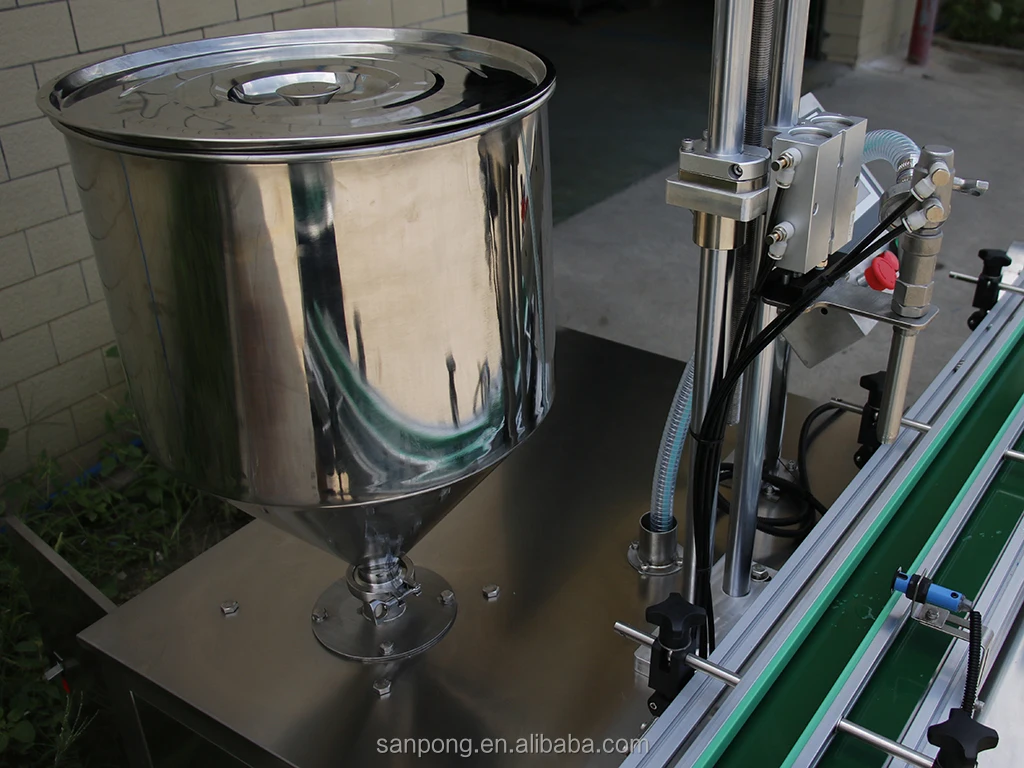

										The storage tank capacity: 40 liters, (can be equipped with floating ball level switch), to ensure the equipment efficient and uninterrupted work;

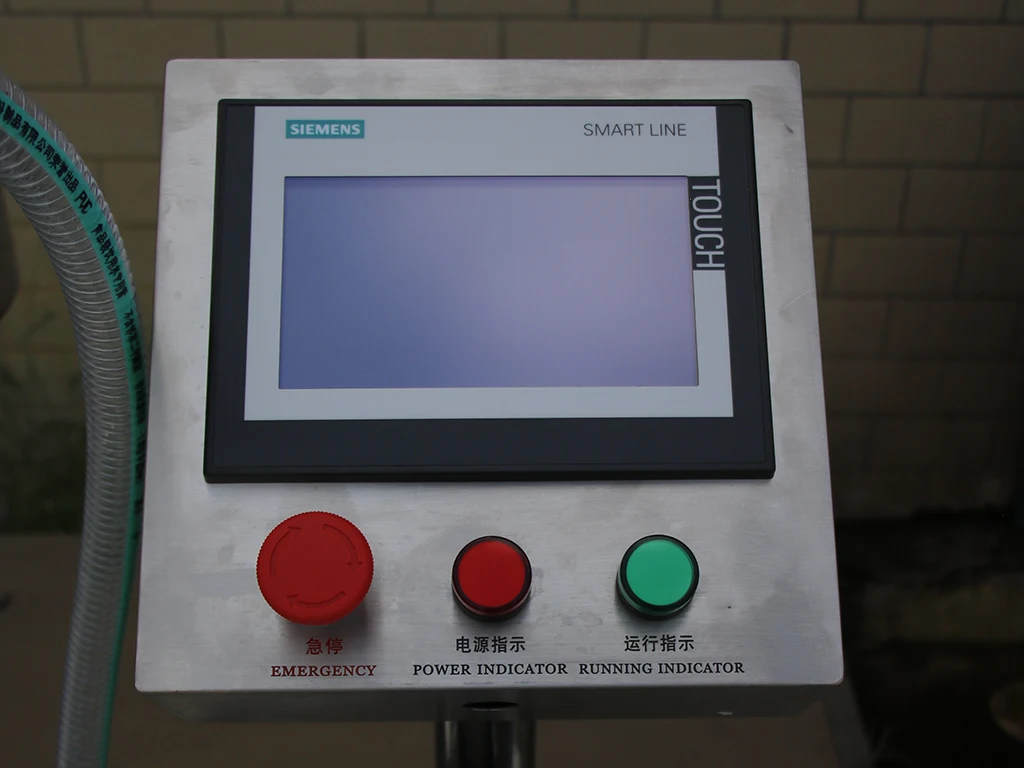

										The overall program control using PLC+ touch screen, adjustment is more convenient and easy to understand

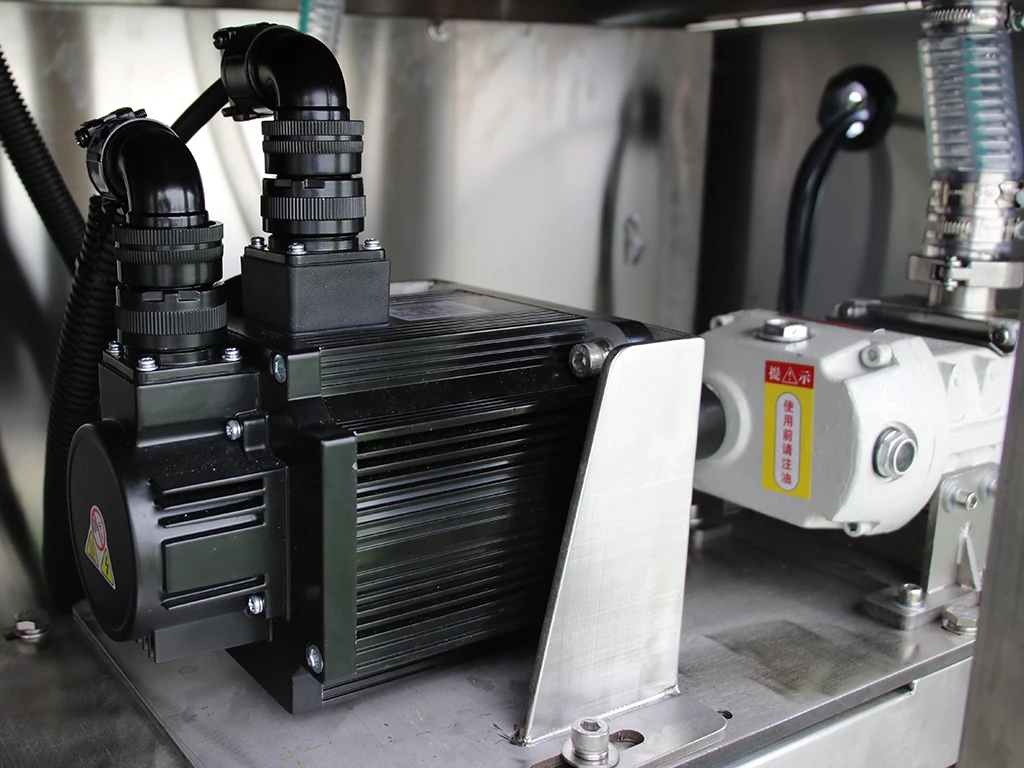

										Rotor pump


Application

								Widely used for filling low-viscosity non-gas liquid such as milk, wine, drinking water, and a variety of food and beverage (such as tea, soy sauce, wine, vinegar, etc.), medicine, chemical, pesticide (containing acid, alkali, organic solvent or diethyl benzene can be) and other industries of all kinds of easy to flow liquid filling.
